Y050T1 50/200 kHz Dual-frequency air transducer
P/N: H2KY050KT1CD00
Y050T1 is a novel dual-frequency ultrasonic air transducer working as a signal transmitting and receiving unit. The dual-frequency transducer can detect as long as up to 12 meter range at 50 kHz operating mode along with only 10 cm blind zone at 200 kHz mode. This ultrasonic transducer is particularly suitable for non-contact level detection and proximity measurement with high resolution, long sensing range, short blind zone as well as exceptional reliability.
| 50 kHz | 200 kHz | ||
| Operation Frequency | 50 | 200 | kHz |
| Capacitance (@ 1 kHz, 1Vrms) | 1500 | 1500 | pF |
| Directivity (Full Angle @-3 dB) | 10 | 6 | Degree |
| Maximum Driving Voltage ( 2% Duty Cycle Tone Burst ) | 1000 | 1000 | Vp-p |
| Maximum Sensing Range | 12 | 2 | meter |
| Blind Zone | <30 | <10 | cm |

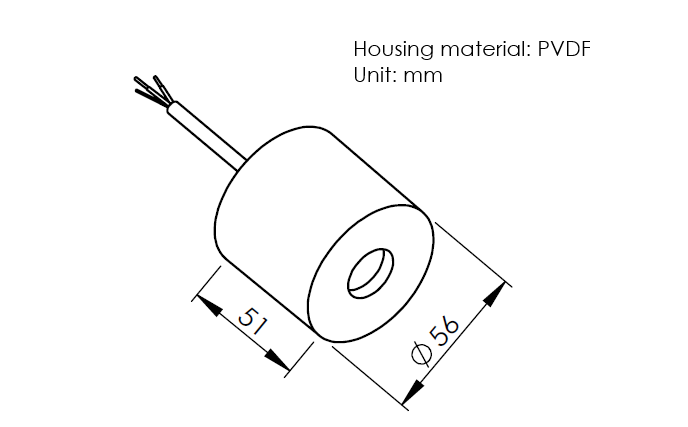

| Dimension-OD (Face) | Φ 56.0 | Φ 56.0 | mm |
| Dimension-Height | 51.0 | 51.0 | mm |
- Proximity measurement
- Non-contact level detection
- River level monitoring
- Petrochemical industry
- Food and beverage industry
- Water supply and drainage industry
- Grain, powder, granular material level detection
- Long sensing range
- Short blind zone
- High resolution
- High reliability
- PVDF housing
- Patented technologies
