A200H1 200 kHz Air transducer
P/N: H2KA200KH1CD00
A200H1 ultrasonic transducer is designed to deliver outstanding performance at around 200 kHz frequency. The transducer works as a signal transmitting and receiving unit. This ultrasonic transducer is suitable for double feed detection, web guiding control and proximity measurement, etc.
| Operation Frequency | 200 | kHz |
| Capacitance (@ 1 kHz, 1Vrms) | 500 | pF |
| Directivity (Full Angle @-6 dB) | 10 | Degree |
| Maximum Driving Voltage ( 2% Duty Cycle Tone Burst ) | 500 | Vp-p |
|
Proportional Band (Working Range) |
8-9 | mm |

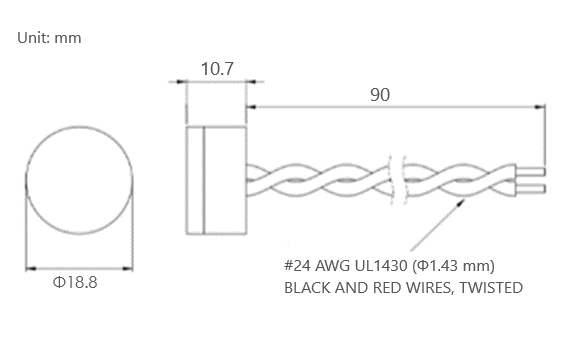

| Dimensions | 18.8x10.7 | mm |
| Housing Material | Aluminum | |
- Edge position control
- Double feed detection
- Proximity measurement
- High performance
- High reliability
- Uniform sound intensity
- Aluminum housing
