A200M7 200 kHz Air transducer
P/N: H2KA200KM7CD00
A200M7 ultrasonic transducer is designed to deliver outstanding performance at around 200 kHz frequency using our in-house piezoceramic. The transducer works as a signal transmitting and receiving unit. This ultrasonic transducer is suitable for industrial gas flow measurement in high pressure custody transfer with high sensitivity, low noise, low ZFD (zero flow drift), high precision as well as exceptional reliability.
| Operation Frequency | 200 | kHz |
| Capacitance (@ 1 kHz, 1Vrms) | 500 | pF |
| Directivity (Full Angle @-6 dB) | 10 | Degree |
| Maximum Driving Voltage  ( 2% Duty Cycle Tone Burst ) | 500 | Vp-p |

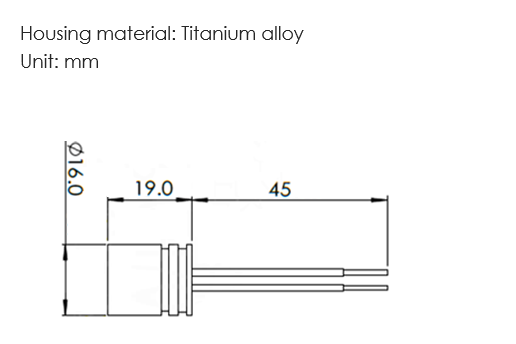

| Dimension-OD (Face) | 16.0 | mm |
| Dimension-Height | 19.0 | mm |
| Operation Pressure | 1.6 | Mpa |
| Operating Temperaturel | -30°C to +70°C | |
- Gas flow meter
- Non-contact level detection
- High performance
- High reliability
- Chemical resistance
- High pressure resistance
- Waterproof IP68
- Titanium alloy housing
