Y050A 50/200 kHz Dual-frequency air transducer
P/N: H2KY050KA1CD00

Y050A is a novel dual-frequency ultrasonic air transducer working as a signal transmitting and receiving unit. The dual-frequency transducer  can detect as long as up to 12 meter range at 50 kHz operating mode along with only 10 cm blind zone at 200 kHz mode. This ultrasonic transducer is particularly suitable for non-contact level detection and proximity measurement with high resolution, long sensing range, short blind zone as well as exceptional reliability.

  50 kHz 200 kHz
Operation Frequency 50 200 kHz
Capacitance (@ 1 kHz, 1Vrms) 1500 1500 pF
Directivity (Full Angle @-3 dB) 10 6 Degree
Maximum Driving Voltage ( 2% Duty Cycle Tone Burst ) 1000 1000 Vp-p
Maximum Sensing Range 12 2 meter
Blind Zone <30 <10 cm
Dimension-OD (Face) Φ 56.0 Φ 56.0 mm
Dimension-Height 51.0 51.0 mm
  • Proximity measurement
  • Non-contact level detection
  • River level monitoring
  • Petrochemical industry
  • Food and beverage industry
  • Water supply and drainage industry
  • Grain, powder, granular material level detection
  • Long sensing range
  • Short blind zone
  • High resolution
  • High reliability
  • PVDF housing
  • Patented technologies

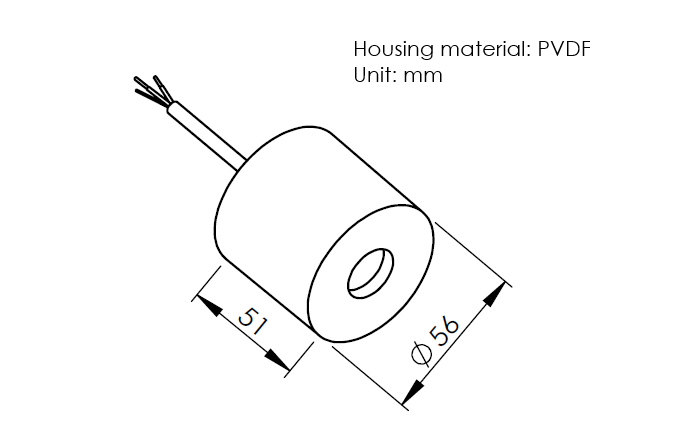

Y050A Dimensions
