A125F1 125 kHz Air transducer
P/N: H2KA125KF1CD00
A125F1 works as a signal transmitting and receiving unit. This ultrasonic transducer is particularly suitable for non-contact level detection and proximity measurement with high resolution as well as exceptional reliability.
| Operation Frequency | 125 | kHz |
| Capacitance (@ 1 kHz, 1Vrms) | 1000 | pF |
| Directivity (Full Angle @-3 dB) | 10 | Degree |
| Maximum Driving Voltage ( 2% Duty Cycle Tone Burst ) | 800 | Vp-p |
| Maximum Sensing Range | 3 | meter |
| Blind Zone | < 15 | cm |

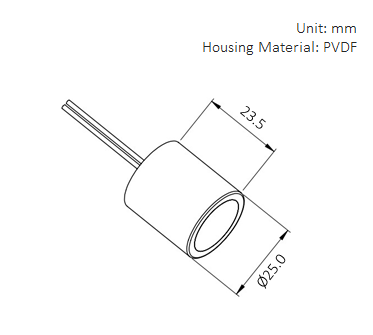

| Dimension-OD (bottom face) | 25.0 | mm |
| Dimension-Height | 23.5 | mm |
- Level detection
- Proximity measurement
- High performance
- High reliability
- PVDF housing
- Waterproof IP68
- Patented technologies
