A100C1 100 kHz Air transducer

A100C1 works as a signal transmitting and receiving unit. This ultrasonic transducer is suitable for non-contact level detection and proximity measurement. In particular, the transducer with the PVDF housing can operate under harsh chemical environment to measure the level of fluids, pastes, and coarse bulk materials.

Operation Frequency 100 kHz
Capacitance (@ 1 kHz, 1Vrms) 3400 pF
Directivity (Full Angle @-3 dB) 10 Degree
Maximum Driving Voltage ( 2% Duty Cycle Tone Burst ) 800 Vp-p
Maximum Sensing Range 400 cm
Blind Zone < 20 cm
Dimension-OD (Face) 29.0 mm
Dimension-Height 56.1 mm
  • Non-contact level detection
  • Proximity measurement
  • High performance
  • High reliability
  • PVDF housing
  • FDA compliance
  • Chemical resistance
  • Waterproof IP68
  • Patented technologies

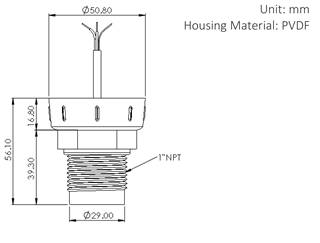

A100C Dimensions
