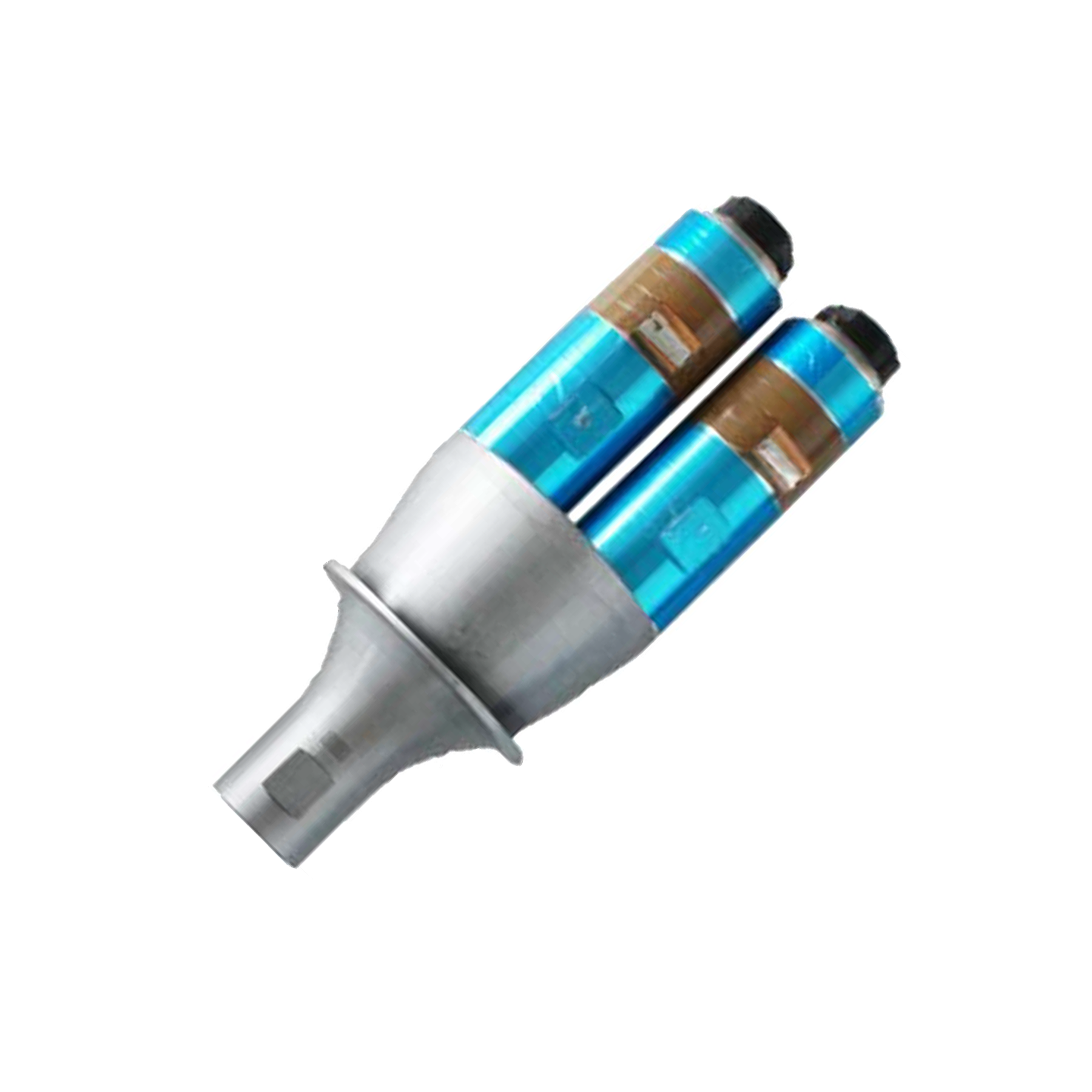

B20260A1 20 kHz Dual-Transducer with Booster
Product Overview
Operating mode: Continuous or pulsed operation
Nominal output power: 2600W
Mounting options: Custom flanges are available upon request
Tooling compatibility: Suitable for steel, aluminum, and titanium-alloy molds
Cooling: External cooling required
Mounting thread: 1/2
| Power (W) | Frequency Range (kHz) | Impedance at Resonant Frequency (Ω) | Capacitance (pF) | Booster Material | Transducer Shape |
|---|---|---|---|---|---|
| Black Ceramic | |||||
| 2600 | 19.85 – 19.95 | 23000-25000 | Steel | Double-Ended Columnar |
● Plastic welding and custom automation systems
