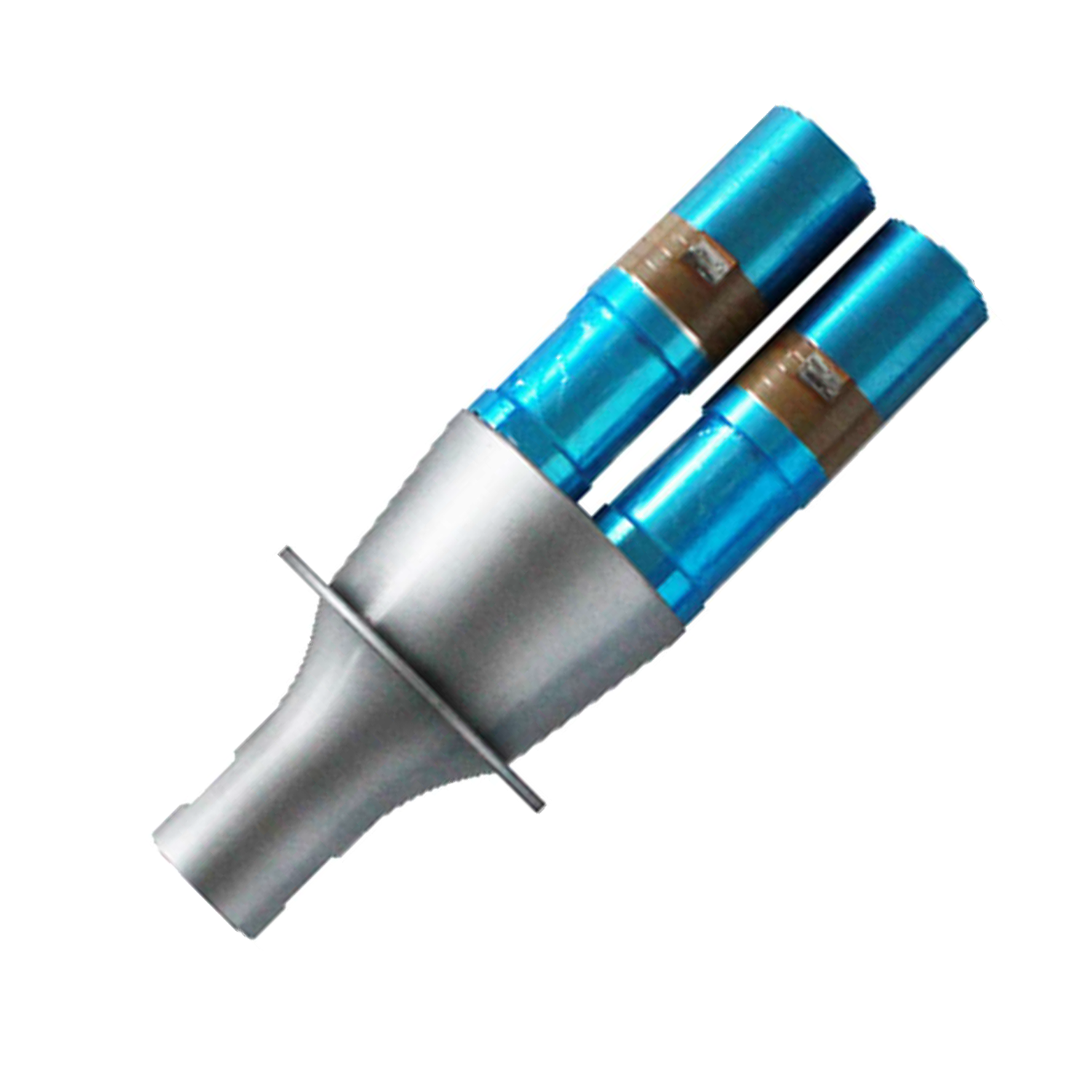

B15328A1 15 kHz Dual-Transducer with Booster
Product Overview
Operating mode: Continuous or pulsed operation
Nominal output power: 3200 W
Mounting options: Custom flanges are available upon request
Tooling compatibility: Suitable for steel, aluminum, and titanium-alloy molds
Cooling: External cooling required

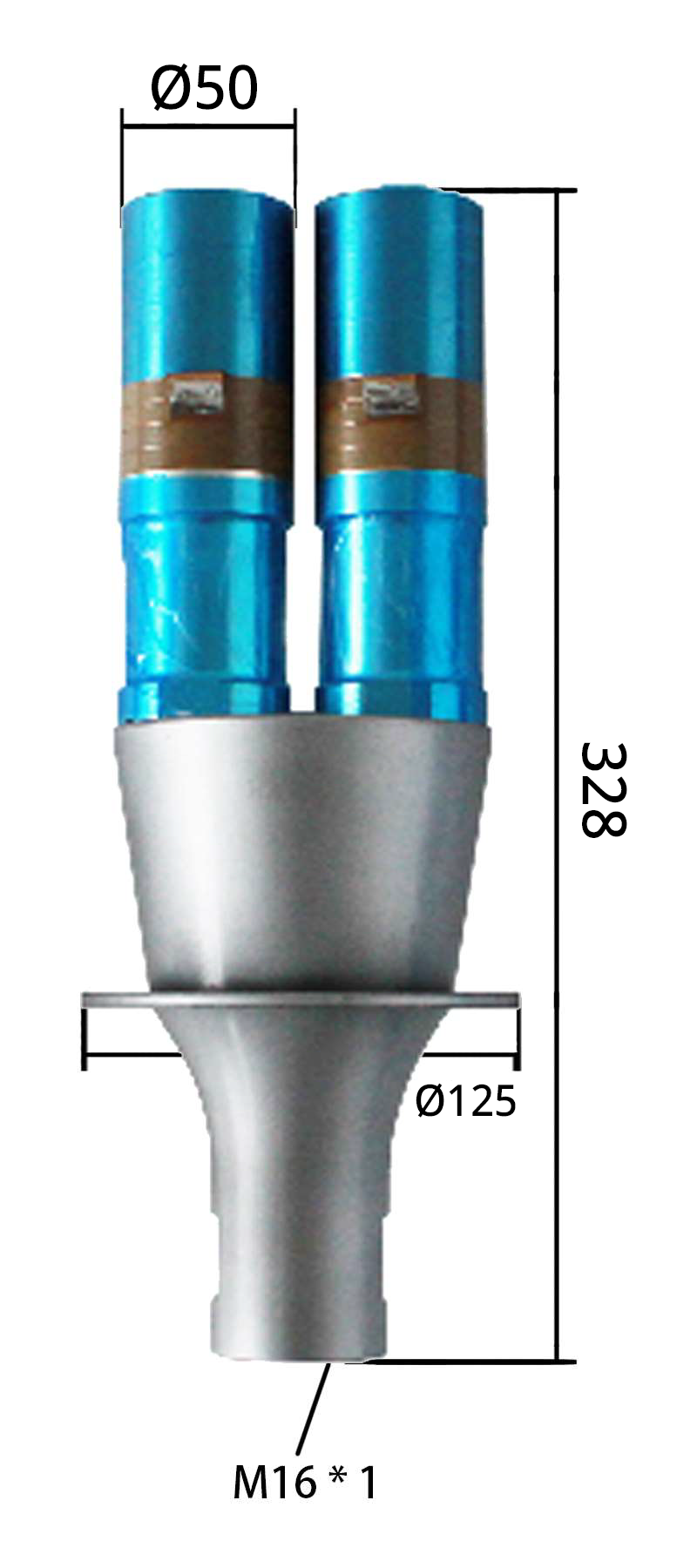

Mounting thread: M16 × 1
| Power (W) | Frequency Range (kHz) | Impedance at Resonant Frequency (Ω) | Capacitance (pF) | Booster Material | Transducer Shape |
|---|---|---|---|---|---|
| Black Ceramic | |||||
| 3200 | 14.75 – 15.00 | ≤15 | 22000-24000 | Steel | Double-Ended Dumbbell-Shaped |
● Plastic welding and custom automation systems
