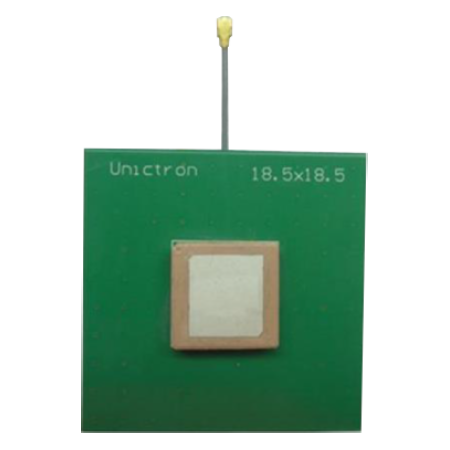

Patch Antenna Series
Unictron offers a series of Patch(SMT) Antenna designed for satallite navigation/time synchronization application, covering available frequencies of GPS/Galileo/Glonass/Beidou/QZSS systems. The Patch(SMT) Antenna series are fabricated with proprietary design and processes and show excellent performance.
Technical Briefs
| Square Patch Antennas (SMD type) | |||||
|---|---|---|---|---|---|
| Dimension (mm) | Frequencies (MHz) | Polarization | Peak Gain (dBic)* | Bandwidth (MHz) | VSWR |
| 20.0 x 20.0 x 4.0 | 1575 | Circular | 2.1 (typical) | 16.0 (min.) | 2.0 (max.) |
| 18.0 x 18.0 x 4.0 | 2320~2345 | Circular (LHCP) | 3.6 (typical) | 60.0 (min.) | 2.0 (max.) |
| 12.0 x 12.0 x 4.0 | 1575 | Circular | -1.1 (typical) | 18.0 (min.) | 2.0 (max.) |
| 10.0 x 10.0 x 4.0 | 1575 | Circular | -4.1 (typical) | 4.0 (min.) | 1.5 (max.) |
| 9.0 x 9.0 x 4.4 | 1575 | Circular | -4.5 (typical) | 12.0 (min.) | 2.0 (max.) |
| 9.0 x 9.0 x 4.0 | 1575 | Circular (RHCP) | -5.4 (typical) | 5.0 (min.) | 2.0 (max.) |
| 1598 ~ 1606 | Circular (RHCP) | -3.8 (typical) | 6.0 (min.) | 2.0 (max.) | |
| 9.0 x 9.0 x 4.4 | 1575 | Circular (RHCP) | -4.8 (typical) | 16 (typical) | 2.0 (max.) |
| Square Patch Antennas (SMD type) | |||||
| Dimension (mm) | Frequencies (MHz) | Polarization | Peak Gain (dBic)* | Bandwidth (MHz) | VSWR |
| 27.0 x 32.5 x 0.8 | 1575 | Circular (RHCP) | -5.2 (typical) | 16.0 (min.) | 2.0 (max.) |
