The UV series varistors are designed in plastic packages to protect electronic devices from medium to low voltage surges.
They are functionally equivalent to DIP varistors with leaded discs of sizes 7mm and 10mm.
They are made of tinned copper plate, the thermoplastic package is non-flammable and UL 94 V-0 certified.

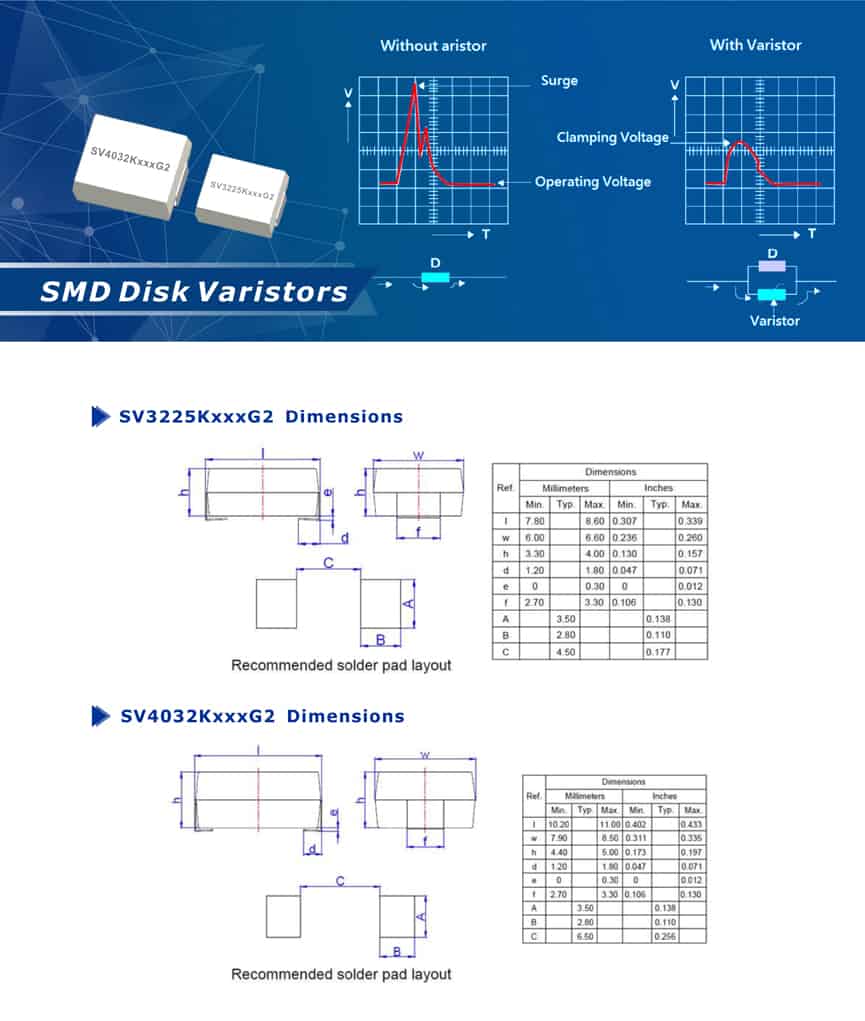

The varistors of the UV series are designed for surface mounting and are available in sizes of 3225 & 4032.
These SMD Varistors operate at Vrms from 11 V to 460 V.
The Model 3225 has a maximum surge current suppression capability of 250 A to 1000 A.
The Model 4032 has a maximum surge current suppression capability of 500 A to 2500 A.
