AC-5 Series

Name: AC-5-A-A01
SKU: 8795
Availability: OutOfStock

Product Name:AC-5-A-A01

Stacked Antenna Module

Highlighted applications:
Stacked patch active ceramic patch antenna for GNSS L1/L2 Application. High gain & low noise figure. Please see below for more details.

Standard

Contact Sales

Catalog

Description

Stacked Antenna Module

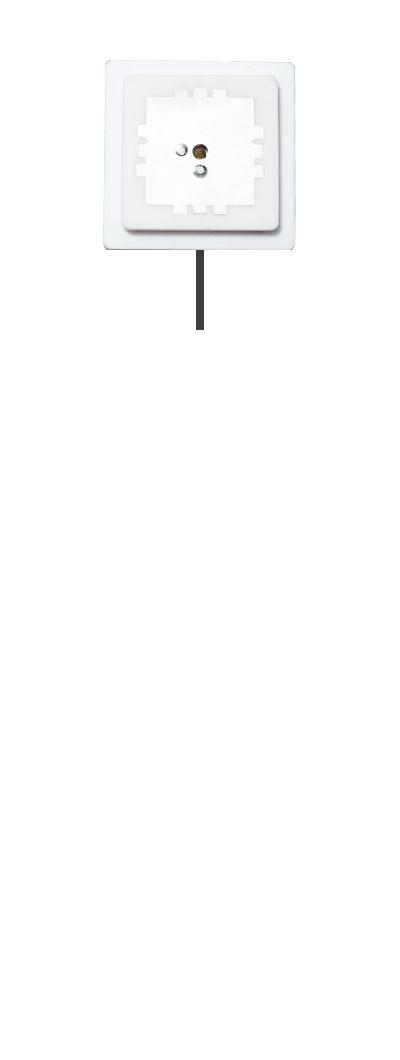

The AC-5-A-A01 is an internal GPS/GLONASS antenna module with H100 cable and BNC Male connector. It is the ideal antenna for the next generation GNSS devices to achieve good sensitivity across all bands in a small form factor. Customized cable length is available.

Technical Briefs

Function : GPS / GLONASS / Beidou
Dimension : 50mm x 50mm x 6mm
Mounting Type : Magnetic Mount
Antenna Element Count : Single Antenna
Operating Temperature : -40 ~ +85 oC
IP Rating : N/A
